Ruud Air Handlers

Ruud’s exciting line of air handlers has the right model, size, and efficiency rating that your home and family deserve.

Hydronic Air Handler – Powered by Tankless Technology (RWMV)

Hydronic Air Handler

  • Low profile 34-inch design is lighter, easier to handle and leaves room for optional accessories
  • Left or right side electric connections
  • Integrated control board features diagnostics, manages all operational functions and provides hookups for humidifier and electronic air cleaner
  • An insulated blower compartment makes it one of the quietest hydronic air handlers on the market today
  • Pre-paint galvanized steel cabinet
  • Molded permanent filter(s)
  • Transformer and control fuse protection
  • Solid bottom is standard
  • A variety of cooling coils and plenums designed to use with the Hydronic Air Handler are available as optional accessories for air conditioning models
  • Stainless steel water pump
  • Field covertiable for vertical downflow, horizontal left hand, or right hand air supply
  • Energy efficient ECM motor which slowly ramps up speed for quiet and finely tuned operation to maintain constant CFM
  • Factory installed indoor coil
  • Pump control knob allows adjustment of the differential between the inlet water temperature and outlet air temperature.

EcoNet™ Enabled High Efficiency Modulating with CFM Motor (RHMV)

  • The RHMV is EcoNet Enabled: This allows the RHMV to directly communicate with the EcoNet Smart Home System.
  • The RHMV features an Electronic Expansion Valve (EEV)
  • Features a constant CFM variable speed motor (ECM) which provides enhanced SEER performance. The RHMV is rated with UA17, UA20 air conditioners and UP17, UP20 heat pumps.
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep.
  • All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
  • Enhanced airflow up to .7″ external static pressure.
  • Suitable for application in mobile homes.

High Efficiency – Two-Stage ECM Motor (RH2T)

  • The RH2T is EcoNet Enabled (EEV Option): This allows the RH2T to directly communicate with the EcoNet Smart Home System.
  • Feature an Electronic Expansion Valve (EEV)
  • The RH2T features a Constant Torque Two-stage motor (ECM) which provides enhanced SEER performance with most Ruud outdoor units.
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • 1½ ton [5.3 kW] through 5 ton [17.6 kW] models are between 42½ to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep.
  • All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
  • Enhanced airflow up to .7″ external static pressure.
  • Suitable for application in mobile homes.

High Efficiency – ECM Motor (RH2V)

  • Includes an energy efficient ECM® Motor, which in most applications, enhances the SEER rating of the outdoor unit. It also slowly ramps its speed up for quiet operation and enhanced customer satisfaction.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Nominal airflow up to 1.0″ external static pressure.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • Dip switch settings for selectable, customized cooling airflow over a wide variety of applications.
  • On-demand dehumidification terminal that adjusts airflow to help control humidity for unsurpassed comfort in cooling mode.
  • External filter required.
  • Evaporator coil is constructed of aluminum fins bonded to internally grooved aluminum tubing.

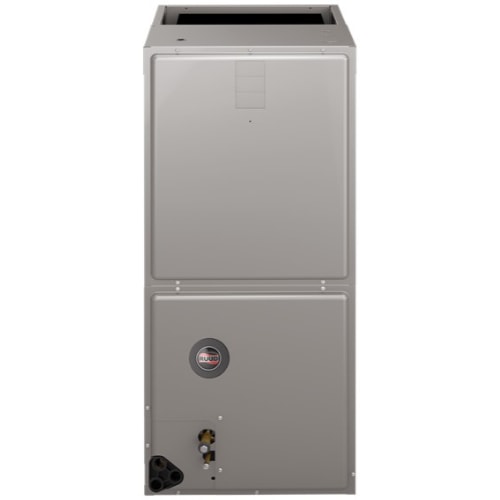

High Efficiency – ECM Motor (RH1V)

  • Includes an energy efficient ECM® Motor, which in most applications, enhances the SEER rating of the outdoor unit. It also slowly ramps its speed up for quiet operation and enhanced customer satisfaction.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Nominal airflow up to 1.0″ external static pressure.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • Dip switch settings for selectable, customized cooling airflow over a wide variety of applications.
  • On-demand dehumidification terminal that adjusts airflow to help control humidity for unsurpassed comfort in cooling mode.
  • External filter required.
  • Evaporator coil is constructed of aluminum fins bonded to internally grooved aluminum tubing.

Standard Efficiency – PSC Motor (RH1P)

  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 551/2 inches [1080 to 1410 mm] tall and 22 inches [559 mm] deep.
  • All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
  • Enhanced airflow up to .7″ external static pressure.
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.

High Efficiency Constant Torque (ECM) Motor (RH1T)

  • RH1T feature a Constant Torque motor (ECM) which provides enhanced SEER performance with most Ruud outdoor units.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil. • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 551/2 inches [1080 to 1410 mm] tall and 22 inches [559 mm] deep.
  • All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
  • Enhanced airflow up to .7″ external static pressure.
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing

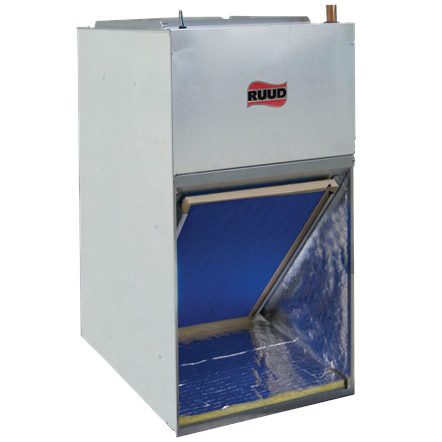

Front or Bottom Return – with ECM Motor (RF1T)

  • Front or Bottom Return
  • Flow Check Piston for cooling or heat pump operation
  • Wall-hanging brackets
  • Built in Filter Rack
  • AHRI Certified
  • UL Certified
  • Molex Plug Connections for field installed heater kits
  • Dual Voltage Direct Drive Blower with multi-speed motor
  • Thermoplastic Drain Pan with bottom primary and secondary connections
  • Optional Decorative Grill for front return applications
  • Optional Factory Installed Condensate Float Switch which shuts off the outdoor unit in event the condensate pan becomes clogged

Front or Bottom Return – with PSC Motor (RF1P)

  • Front or Bottom Return
  • Flow Check Piston for cooling or heat pump operation
  • Wall-hanging brackets
  • Built in Filter Rack
  • AHRI Certified
  • UL Certified
  • Molex Plug Connections for field installed heater kits
  • Dual Voltage Direct Drive Blower with multi-speed motor
  • Thermoplastic Drain Pan with bottom primary and secondary connections
  • Optional Decorative Grill for front return applications
  • Optional Factory Installed Condensate Float Switch which shuts off the outdoor unit in event the condensate pan becomes clogged

Hydronic Air Handler – Powered by Tankless Technology (RW1T)

Features of the Hydronic Air Handler

  • Low profile 34-inch design is lighter, easier to handle and leaves room for optional accessories
  • Left or right side electric connections
  • Integrated control board features diagnostics, manages all operational functions and provides hookups for humidifier and electronic air cleaner
  • An insulated blower compartment makes it one of the quietest hydronic air handlers on the market today
  • Pre-paint galvanized steel cabinet
  • Molded permanent filter(s)
  • Transformer and control fuse protection
  • Solid bottom is standard
  • A variety of cooling coils and plenums designed to use with the Hydronic Air Handler are available as optional accessories for air conditioning models
  • Stainless steel water pump

Features of the Tankless Water Heater

  • Industry best! Minimum flow rate of .26 GPM, minimum activation flow rate of .40 GPM
  • ENERGY STAR® rated models available
  • Next generation burner technology
  • UMC-117 remote control and 10 ft. of thermostat wire is included
  • EZ-Link™ cable available for high demand applications to connect two tankless units to operate as one
  • High-altitude capability – up to 9,840 ft. elevation above sea level (no chip required)
  • Intelligent electronic controls designed to increase energy efficiency and safety
  • Self Diagnostic System

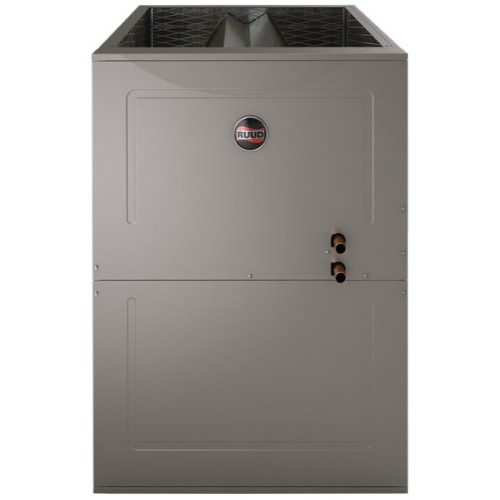

Hydronic Air Handler – Powered by Tankless Technology (RW1P)

Features of the Hydronic Air Handler

  • Low profile 34-inch design is lighter, easier to handle and leaves room for optional accessories
  • Left or right side electric connections
  • Integrated control board features diagnostics, manages all operational functions and provides hookups for humidifier and electronic air cleaner
  • An insulated blower compartment makes it one of the quietest hydronic air handlers on the market today
  • Pre-paint galvanized steel cabinet
  • Molded permanent filter(s)
  • Transformer and control fuse protection
  • Solid bottom is standard
  • A variety of cooling coils and plenums designed to use with the Hydronic Air Handler are available as optional accessories for air conditioning models
  • Stainless steel water pump

Features of the Tankless Water Heater

  • Industry best! Minimum flow rate of .26 GPM minimum activation flow rate of .40 GPM
  • ENERGY STAR® rated models available
  • Next generation burner technology
  • UMC-117 remote control and 10 ft. of thermostat wire is included
  • EZ-Link™ cable available for high demand applications to connect two tankless units to operate as one
  • High-altitude capability – up to 9,840 ft. elevation above sea level (no chip required)
  • Intelligent electronic controls designed to increase energy efficiency and safety
  • Self Diagnostic System

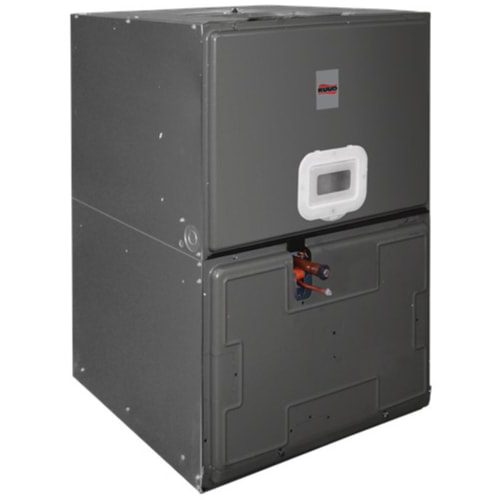

High Efficiency – ECM Motor – 35″ Cabinet Height (RBHP)

Enjoy the Benefits of Advanced Comfort

The Ruud High-Efficiency Air Handler is engineered to improve energy savings and comfort all year long. The unit’s versatile design makes it a great fit for any system and keeps your home conditioned just the way you like it.

Energy Savings – The Ruud RBHP Series Air Handler is designed for high performance, exceeding the standard efficiency requirements and, in many cases, enhancing the efficiency rating of your outdoor air conditioning unit.

Humidity Control – A new Ruud Air Handler will help manage humidity levels in the home, improving your comfort and helping you save money on energy bills.

Efficient Heating & Cooling – Ruud Air Handlers also feature a flexible design that allows them to meet the needs of a variety of systems. Your contractor will recommend a unit that will best meet your home’s airflow needs.

The Rewards of Ruud Proven Quality

Quiet Operation – The Ruud RBHP Series Air Handler is designed with a sturdy steel cabinet with one inch of foil-faced insulation, offering excellent thermal and sound insulation.

Versatile Design – The 4-way convertible design of Ruud Air Handlers allows the unit to fit in with the design of your home.

Easy Service – Ruud Air Handlers have been engineered to provide your technician easy access to all internal components, including a permanent, accessible and washable filter, helping any service time stay short and simple.

Front or Bottom Return – Slab Coil with ECM Motor (RHBL)

Enjoy the Benefits of Guaranteed Comfort

The Ruud RHBL Air Handler is engineered to improve energy savings and comfort all year long. The unit’s versatile design makes it a great fit for any system and keeps your home conditioned just the way you like it.

Energy – Savings The Ruud RHBL Series Air Handler is designed for high performance, exceeding the standard efficiency requirements and, in many cases, enhancing the efficiency rating of your outdoor air conditioning unit.

Humidity Control – A new Ruud Air Handler will help manage humidity levels in the home, improving your comfort and helping you save money on energy bills.

Efficient Heating & Cooling – Ruud Air Handlers also feature a flexible design that allows them to meet the needs of a variety of systems. Your contractor will recommend a unit that will best meet your home’s airflow needs.

The Rewards of Ruud Proven Quality

Affordable and Reliable – The Ruud RHBL Air Handler is certified and independently verified, delivering guaranteed comfort for your home that’s easy to afford.

Durable Design – Ruud Air Handlers are designed to be durable and long-lasting. A unique drip pan feature protects your home from potentially damaging condensation run-off, delivering peace of mind in addition to long-lasting comfort.

Optional Electric Heat – The Ruud RHBL Air Handler features connections for heater kits to provide efficient heating for your home – keeping you cozy all winter long.

Easy Service – Ruud Air Handlers have been engineered to provide your technician easy access to all internal components, helping any service time stay short and simple.

Front or Bottom Return – Slab Coil with PSC Motor (RHAL)

Enjoy the Benefits of Guaranteed Comfort

At Ruud, we understand the needs of everyday living, which is why the Ruud RHAL Air Handler was designed to guarantee homeowners like you highly efficient performance with improved energy savings and greater comfort.

Flexible Performance – The Ruud RHAL Series Air Handler is designed to meet the needs of a variety of systems

Easy Installation – The Ruud RHAL Air Handler includes wall hanging brackets, designed to make installation a breeze. AHRI and UL certifications help guarantee that, post-installation, the unit operates as advertised.

Efficient Heating and Cooling – With the Ruud RHAL Air Handler, you have the choice between a higher or lower efficiency unit. However, both options deliver comfortable cooling while still helping to manage the household budget.

Enjoy Long-Lasting Quality and Comfort – Affordable and reliable The Ruud RHAL Air Handler is certified and independently verified, delivering guaranteed comfort for your home that’s easy to afford.

Durable Design – Ruud Air Handlers are designed to be durable and long-lasting. A unique drip pan feature protects your home from potentially damaging condensation run-off, delivering peace of mind in addition to long-lasting comfort.

Optional Electric Heat – The Ruud RHAL Air Handler features connections for heater kits to provide efficient heating for your home – keeping you cozy all winter long.
